HANDHELD FUNDUS CAMERA COMPARISON
CODE	ITEM	BRANDS & MODULE
		MOCULAR	HORUS	MCIRCOCLEAR		NewEyes	VOLK/BOSCH	Mediworks
		CFC-X  Non mydriatic	DSC300	FC-40	LUNA plus	NES-1000P	PICTOR PLUS	FC161

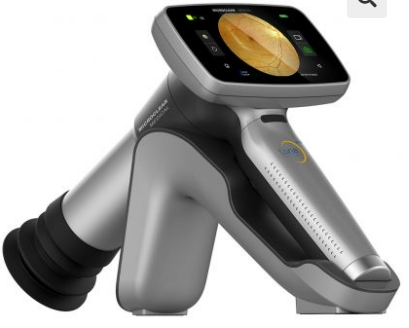

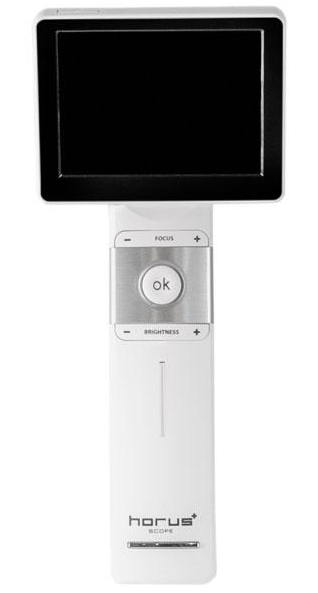

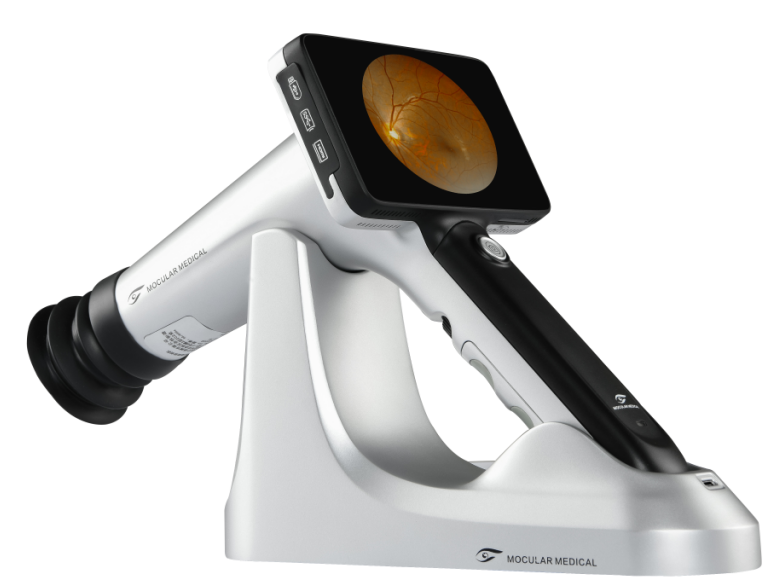

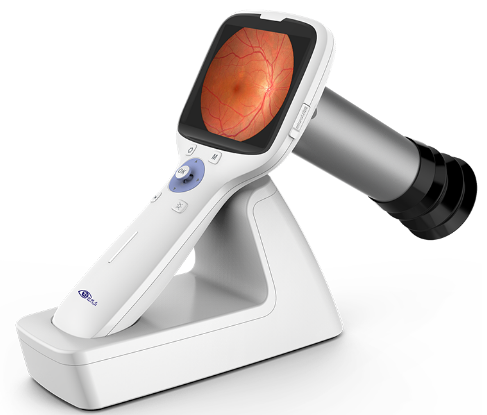

1	Pictures
2	Sensor Resolution	18 mpx	5 mpx	2 mpx	16 mpx	2 mpx	5 mpx	12 mpx
3	Minimu Pupil Size	2.5mm	3.5 mm	2.5mm	2.5 mm	2.5 mm	3mm	3.5mm
4	Field of View	50°	45°	40°	45°	40°	40°	45°
5	Fixation Targets	5	7		8		9	9
6	Refractive Compensation	-20D~+20D	-20D~+20D		-20D~+20D	-20D~+20D	-20D~+20D	-20D~+20D
7	Focus Mode	Auto&Manual	Auto &  Manual	Manual	Auto&Manual	Manual	Auto&Manual	Auto&Manual
8	Illumination	LED	LED	LED	LED	White LED		White LED
9	Display	4.7" touch screen	3.5" touch screen	3.5″	3.97″	3.5″	2.4"	4.3" touch screen
10	Memory	RAM 4G+Internal storage 64G	SD Card. 2 – 32 GB	8G(SD)	Internal 16 GB	8GB(SD)	4GB(SD)	Micro SD card.  Maximum 32 G
11	Image and video Format	Jpg, DICOM3.0, MPEG-4/1	JPEG, H.265(video)			JPEG	JPG, DICOM, MPEG-4/MPEG-1	JPEG
12	Type of photography	Color, Red-free				Color, Red-free		Color
13	Connectivity	USB3.0, TPC, WiFi, SD,  HDMI,BT	USB, SD, WIFI		USB/WiFi/BT	WIFI	Wi-Fi, USB	Wi-Fi, USB
14	Other Functions	4G, NFC,share screen with PC/TV	share screen with PC/TV
15	System	Android System			Android System
16	Power Supply	3.7V 3500mAh Lithium Ion			3.7V 3400 mAh Lithium Ion	3.7V 3400 mAh Lithium Ion	Rechargeable Ni-MH battery	3.7V 3400 mAh Lithium Ion
17	Dimensions	205mm*125mm*205mm	200mm*90mm*200 mm	160 (W) x 90(D) x 190(H) mm	160 (W) x 90(D) x 190(H) mm	300*90*190mm	Handset -82 x 166 x 66mm - Retina module - 67 x 73 x 160 - Anterior module - 79 x 70	280*130*150mm
18	Weights	600g	500 g	450 g	560 g	450 g	Handset - 0.8 lb (400g) - Retina Module - 0.6 lb (300g) - Anterior module - 0.2 lb (92g)	800g
19	AI function	operate on device directly Free to use		no	no	no		with PC software only,  charge

Baoding Ray Vision, a professional manufacturer and supplier of ophthalmic and eye-care equipment, proudly presents the FC-500 Fundus Camera — a portable, non-mydriatic retinal imaging system designed for accurate eye disease diagnosis and retinal photography. The FC-500 combines advanced imaging optics with a 12-megapixel high-resolution sensor, providing sharp, detailed fundus images even through a 2.5 mm pupil. This compact and lightweight ophthalmic instrument enables real-time image display, WiFi data transfer, and DICOM-compatible storage, making it ideal for eye clinics, hospitals, optometry practices, and telemedicine applications. With its intuitive 4.7-inch touch screen, versatile manual/automatic focus, and long-lasting rechargeable battery, the FC-500 Fundus Camera offers professional-grade retinal imaging performance in a highly portable design.

FEATURE:

1. Non-Mydriatic High-Definition Imaging

The FC-500 retinal camera captures clear, high-resolution fundus images without pupil dilation. Using natural white LED illumination and infrared focusing, it provides precise visualization of the optic disc, macula, and retinal vessels for effective ophthalmic examination and eye disease screening.

2. 12-Megapixel Image Sensor with 50° Field of View

Equipped with a 12 MP high-resolution sensor and 50° field of view, the FC-500 delivers sharp and detailed retinal images comparable to traditional tabletop fundus cameras, while maintaining a compact and lightweight form factor.

3. Real-Time Image Display & One-Button Zoom

Featuring a 4.7-inch multi-touch screen, the FC-500 allows instant image preview, one-button magnification, and easy patient data management. The interface is designed for optometrists and ophthalmologists to streamline retina examinations efficiently.

4. Lightweight and Portable Design

Weighing only 600 g, the FC-500 portable fundus camera can be easily carried and operated with one hand. Its rechargeable battery supports over 5 hours of continuous operation, making it ideal for mobile eye screening, field clinics, and tele-ophthalmology programs.

5. Flexible Connectivity and Data Management

The FC-500 supports multiple data transmission options including USB, Wi-Fi, Bluetooth, Type-C, SD, and HDMI. Images are stored in JPG, MPEG-4/1, and DICOM 3.0 formats, compatible with PACS and hospital information systems for efficient clinical data integration.

6. Large-Capacity Storage

With a micro SD card capable of storing up to 80,000 fundus images, the FC-500 ophthalmic imaging device provides ample capacity for long-term medical record storage and patient follow-up management.

Why Choose Ray Vision FC-500 Fundus Camera?

Wide 50° field of view (FOV) for comprehensive retinal coverage — ideal for detecting macular, vascular, and optic disc abnormalities.

Non-mydriatic operation with high-definition imaging for patient comfort and efficiency.

12 MP image sensor provides exceptional clarity and color accuracy.

Lightweight (600 g) and portable, perfect for mobile clinics and tele-ophthalmology.

Long-lasting battery life — over 5 hours of continuous operation.

Flexible data connectivity: USB, WiFi, Bluetooth, Type-C, SD, and HDMI.

Details

Conclusion & Call to Action

The FC-500 Fundus Camera from Baoding Ray Vision delivers the perfect combination of wide-field retinal imaging, high portability, and clinical precision. Designed for modern eye-care professionals, it enhances diagnostic accuracy and workflow efficiency in every ophthalmic setting. Upgrade your clinic with the FC-500 — a 50° wide-field, non-mydriatic fundus camera engineered for clarity, mobility, and professional eye examination excellence.
