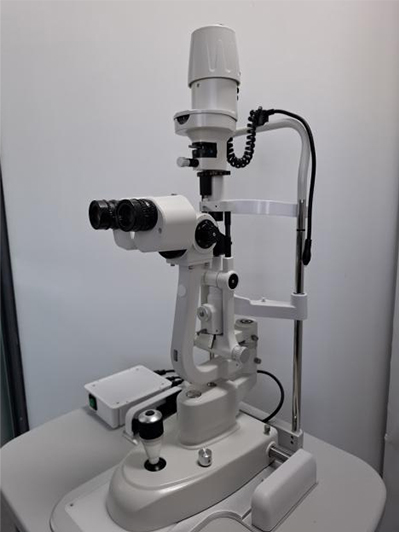

SL-F5 Slit Lamp

Baoding Ray Vision specializes in the research and production of ophthalmic equipment and is a globally renowned supplier of ophthalmic equipment. When eye care professionals search for reliable and high-precision slit lamps to purchase, the SL-F5 slit lamp emerges as an ideal choice. Designed for hospitals, clinics, and optical practices, this advanced ophthalmic instrument delivers outstanding imaging performance, smooth operation, and long-term stability. With user-friendly features and excellent optical quality, the SL-F5 slit lamp is engineered to support accurate diagnosis and comfortable examinations for both doctors and patients.
![]() |
![]() |
DETAILS
Microscope Type |
Galilean System |

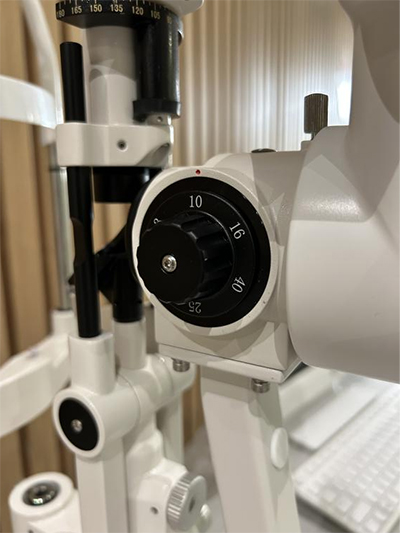

Magnification Changer |
Revolving Drum |
Eyepiece Magnification |
12.5X |
Slit Width |
0mm~14mm Continuously Adjustable |
Slit Length |
1mm~14mm Continuously Adjustable |
Slit Angle |
0~180°Continuously Adjustable |
Filter |
Heat Aborption, Grey, Redfree (Green), Cobalt Blue |
Light Source |
Warm LED |
Magnification |
6.3X,10X,16X,25X,40X |
Diopter |
±7D |
Pupil Range |
52mm-85mm |
Visual Field Diameter |
6X:33mm;10X:22mm;16X:14mm;25X:8.5mm;40X:5.5mm |
lllumination Type |
Haag-Streit Type |
lllumination Tilting |
5°,10°,15°,20° |
Slit Aperture Size |
φ0.2,φ1, φ3, φ5,φ10,φ14(mm) |
![]() |
![]() |
FEATURE
1.High-Precision Optical Performance
The SL-F5 slit lamp integrates a professional optical system that provides bright, clear, and distortion-free images. Its high-quality lenses ensure sharp focus and excellent resolution, making it easier for ophthalmologists to detect subtle details during anterior segment examinations. The precision illumination allows for different angles and brightness levels, giving medical staff full flexibility to perform various diagnostic tests with confidence.
2.Durable and Ergonomic Design

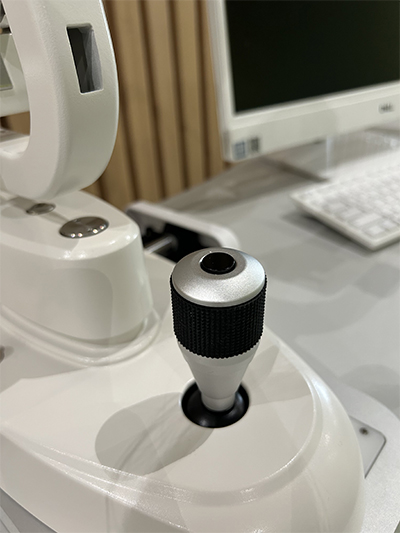

Crafted with robust materials, the SL-F5 slit lamp is built for intensive clinical use. The instrument’s ergonomic structure supports smooth joystick control, precise adjustments, and comfortable handling throughout long working hours. The solid base guarantees stability, while the overall compact design ensures efficient use of space in examination rooms. Its durability reduces maintenance costs and provides a dependable solution for long-term medical service.
3.Smooth Illumination and Versatility
The SL-F5 slit lamp offers uniform and stable slit illumination with adjustable slit width, height, and angle. This versatility allows practitioners to perform detailed eye surface inspections, corneal evaluations, and lens assessments with ease. The wide range of adjustments ensures suitability for both routine examinations and complex diagnostic requirements.
4.Imaging System Compatibility
In modern ophthalmic practice, digital imaging is essential. The SL-F5 slit lamp can be paired with professional imaging modules or cameras to capture high-resolution photos and videos. This enables doctors to document findings, enhance patient communication, and support telemedicine applications. Clinics seeking to upgrade diagnostic efficiency will find the SL-F5 to be a forward-looking investment.
5.Cost-Effective Choice for Clinics and Hospitals
The SL-F5 slit lamp provides an excellent balance between professional quality and affordability. For clinics and distributors looking to purchase high-value ophthalmic equipment, this model reduces overall operating costs while maintaining advanced diagnostic capabilities. Its reliability and strong optical performance make it suitable for a wide range of clinical applications, from routine check-ups to specialized eye disease monitoring.
![]() |
![]() |
![]() |
Conclusion
Choosing the SL-F5 slit lamp means choosing precision, stability, and professional optical performance. Whether you are an ophthalmologist upgrading your diagnostic tools or a medical distributor searching for trusted equipment, the SL-F5 slit lamp is a product that meets international clinical standards.
Take the next step today – contact us to learn more about purchasing the SL-F5 slit lamp and bring advanced eye-care solutions to your practice.
