Joe control
Specifications
Methodology Axial resolution Transverse resolution Scan depth Scan range Scan speed Scan modes Fundus image Focus adjustment Pupil diameter OCT light source Optical power Operation Power supply Dimensions Weight | Spectral domain OCT ≤6μm(in tissue) ≤20μm(in tissue) ≥2.5mm(in air) ≥6mm ≥24,000 A-scans/sec,up to 36,000 A-scans/sec 3D,Raster,Circle OCT en face -15D to+15D ≥3mm 840 nm SLD 750μW(at cornea) 13.3"touch screen,optional external mouse or keyboard 100-240V,50/60 Hz 497 mm×395mm×490 mm(L×W×H) 34kg(75 Ibs) |
Note Subject to change without advanced notice.
6 SYSEYE |
| |
Guangdong Fortune NewVision Optoelectronics Ltd. Songkeyuan Building 11 Floor 4 4 Libin Road Songshan Lake National High-Tech Industrial Development Zone Dongguan,Guangdong P.R.China Phone:+86-769-39012155 | Chongqing Bio NewVision Medical Equipment Ltd. Floor 9th of building#4 Fulicheng Zhihuiguoji 34Jinghe Road Shapingba District,Chongqing P.R.China Phone:+86-23-65456660 | Sales and Marketing Division (Guangzhou) Ziyuan International Business Building Room 812-813 745 Dongfeng East Road,Yuexiu District Guangzhou,Guangdong P.R.China Phone:+86-20-8731257187312572 Email:overseas@fortune-newvision.com |

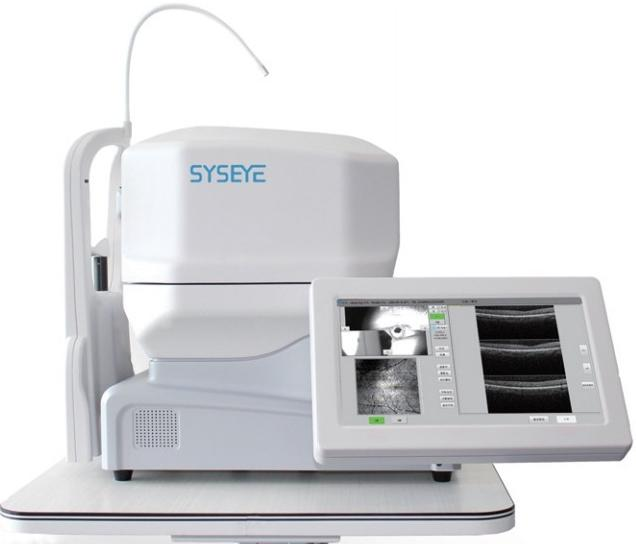

All-in-one Design
Compact Design
Everything is inside this compact body.No external computer is needed. Plug in the power cable,then you are ready to go.
PC Inside
Data acquisition and processing are accomplished by the internal
computer.The data can be
transported via ethernet orexternal harddrive.Peripheral devices,such as keyboard or printer,can be connected to the computer ports.
Easy Installation
No complex connection or setup.
Compact body can fit in even small space.
Affordable Quality
We believe that less is more.The simple design of RetiView 500 OCT reduces the cost of the device without sacrificing the image quality.OCT has never been so affordable.More people can benefit from the advanced technology now.
Product series
MO-15
LO-1
APO-1
SL grey
P Grey
P Grey
